Gateway Plaza

WHO
Architect: Forum Architecture
Installer: Ventana
WHERE & WHEN
Richmond, VA
Americas
Completed · 2015
WHAT & HOW
Office & Retail · New Build

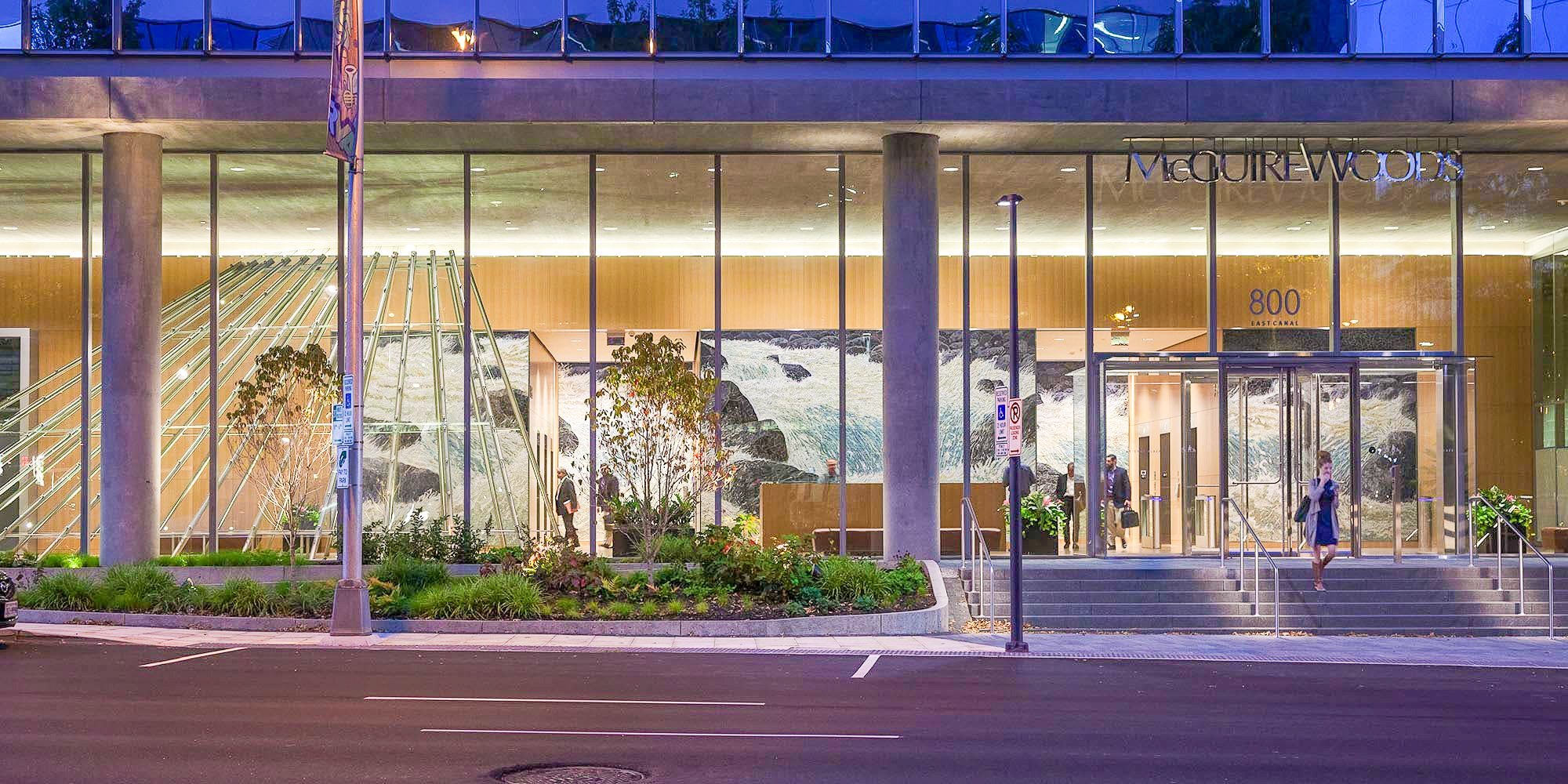

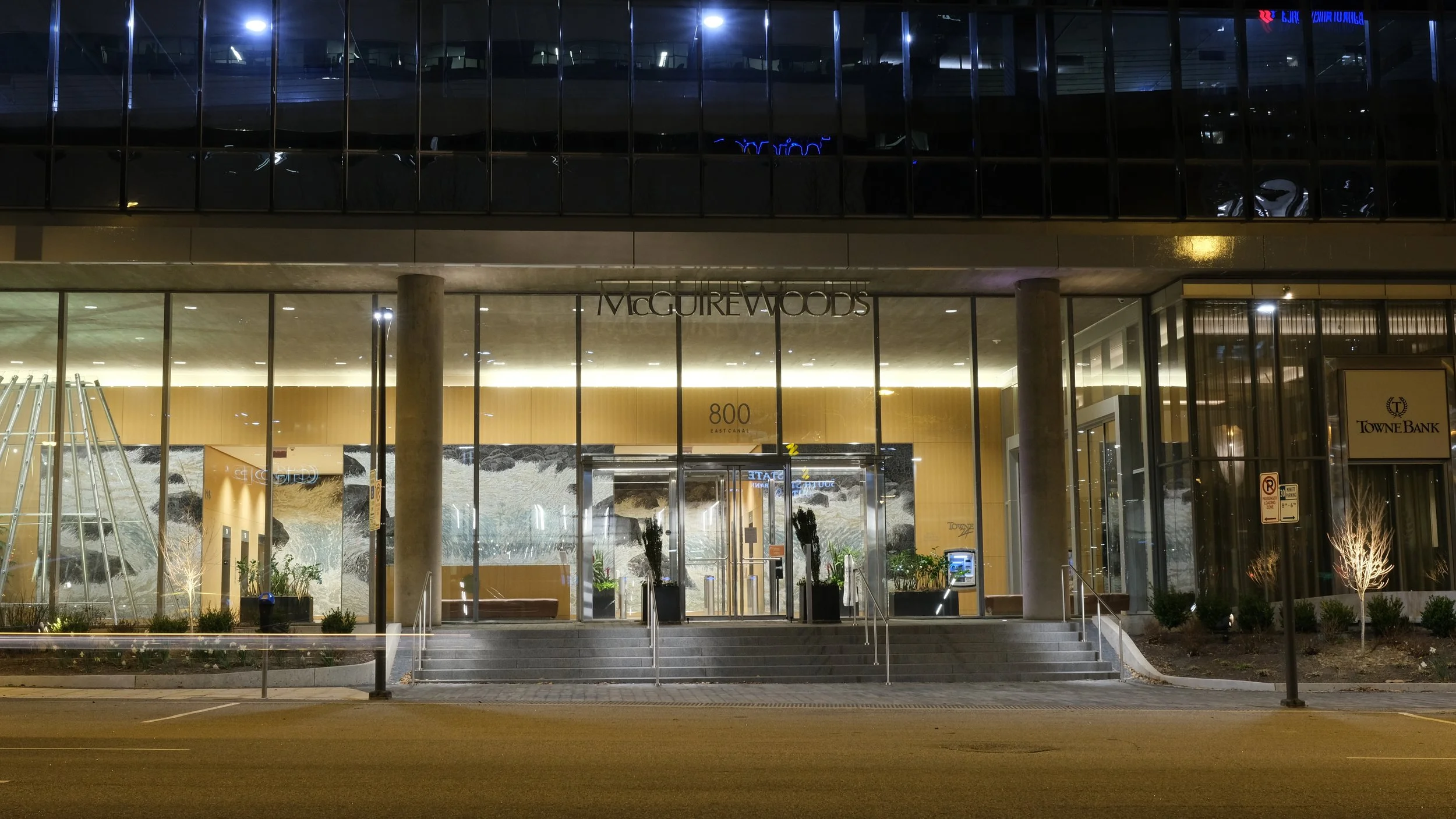

Lobby entry facade · VS1-A110 facade with 20' by 6' glass, 10" mullions

Visitors to this office building are greeted by a stunning VS1 lobby wall. 20’ by 6’ glass panels are supported by a 10”-deep VS1 mullion. An all-glass entry vestibule integrates seamlessly with the VS1 lobby wall.

The building is LEED Gold certified.

FROM THE INSTALLER VENTANA

Ventana was selected to provide the exterior enclosure at the lobby and retail portion of this new office tower located in Richmond, Virginia. This elegant, state-of-the-art office building is a powerful addition to the Richmond skyline. The project is LEED Gold certified.

Ventana provided 12,000 square feet of custom curtain wall for this project. The system used is the VS1 system, which is a point-supported system with no horizontals where the glass is held off the mullions to achieve a sleek and transparent look. The 20 foot tall oversized glass lites were imported from Interpane in Germany and employs a concealed spacer approach to give the look of an uninterrupted flow of glass. Additionally, the project includes custom stainless steel entrances and doors.
